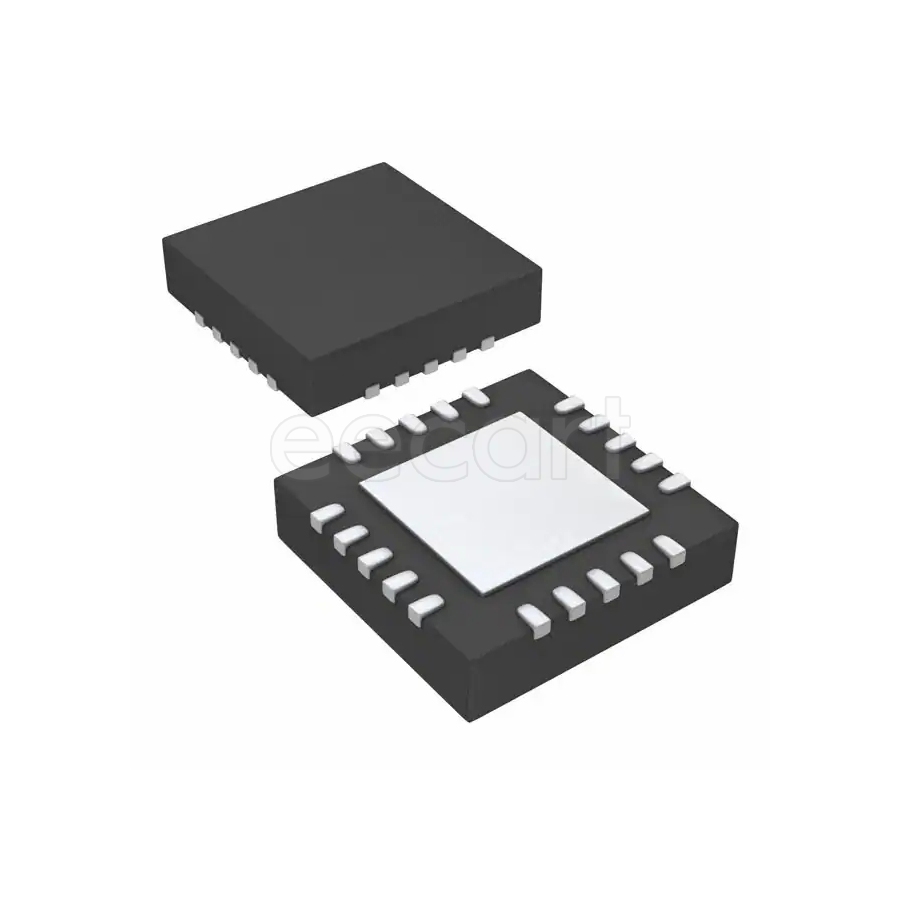

DRV8662RGPT
Manufacturer:
Texas Instruments
Mfr.Part #:
DRV8662RGPT
Datasheet:
Description:
Motor Drivers QFN-20 SMD/SMT Analog, PWM Load voltage:20 V to 200V Differential
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Width | 4 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Height | 1 mm |
| Thickness | 0.93 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Interface | Analog, PWM |
| Min Input Voltage | 1.4 V |
| Output Current | 75 mA |
| Output Voltage | 100 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 3 V |
| Quiescent Current | 5 mA |
| Logic Function | AND |
| Max Input Voltage | 750 mV |
| Nominal Supply Current | 5 mA |
| Collector Emitter Voltage (VCEO) | 5 V |
| Load Voltage | 20 V to 200V |
| Motor Type - AC, DC | Piezo |
| Applications | Haptic Feedback |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Chemistry/Technology | Power MOSFET |
| Operating Supply Voltage | 3 V to 5.5 V |
| Operating Supply Current | 5 mA |
| RoHS | Compliant |
| Packaging | Reel |
| Output Configuration | Differential |
Stock: 265
Distributors
pcbx
pcbxUnit Price$3.89203
Ext.Price$3.89203
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.89203 | $3.89203 |
| 10 | $3.35338 | $33.53380 |
| 25 | $3.10013 | $77.50325 |
| 50 | $2.86601 | $143.30050 |
| 100 | $2.64957 | $264.95700 |
| 300 | $2.44947 | $734.84100 |
| 500 | $2.26447 | $1132.23500 |
| 1000 | $2.19569 | $2195.69000 |
